Uno mismo de la clase 200 que enlaza el alambre de cobre esmaltado 0.26m m de la ronda
Lugar de origen | Zhejiang, China |
---|---|
Nombre de la marca | CHINGCUNG |
Certificación | UL/ISO9001/ISO14001/RoHS/Reach |
Model Number | QZYN-1B/200-0.26 |
Minimum Order Quantity | 30 Kg |

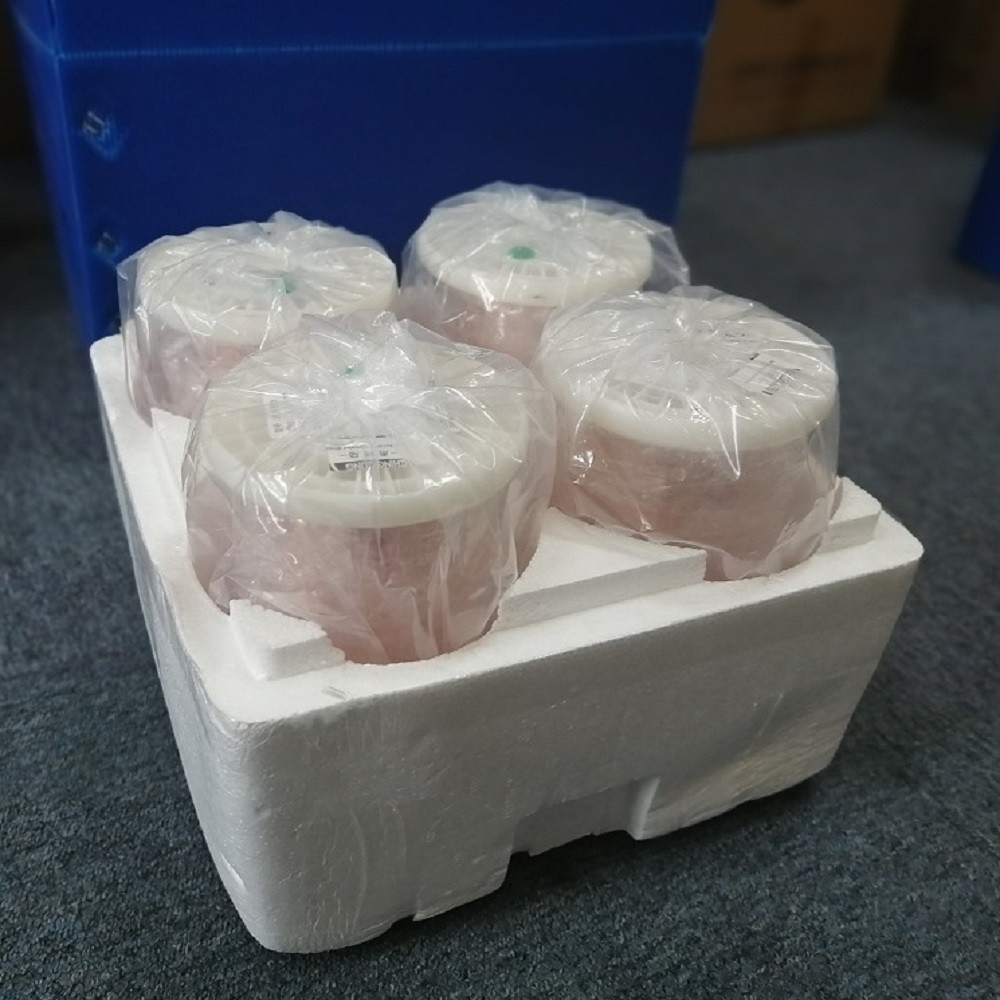

Detalles de empaquetado | 5 kilogramos cada rollo, cartones. |
Delivery Time | 5-7 work days |
Condiciones de pago | T/T |
Supply Ability | 50 tons per month |
Éntreme en contacto con gratis las muestras y los vales.
whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
Si usted tiene alguna preocupación, proporcionamos ayuda en línea de 24 horas.
xNo. de orden. | 30013550260 | Nombre de producto | La inductancia arrolla el alambre |
---|---|---|---|
Método de enlace | Soluble en alcohol | Conductor Diameter | 0.26m m |
Insualtion | polyesterimide | Forma | Ronda |
Color | Natural | Puerto | SHANGAI |
Alta luz | La vinculación del uno mismo esmaltó el alambre redondo de cobre,La clase 200 esmaltó el alambre redondo de cobre,Alambre redondo de cobre esmaltado 0.26m m |

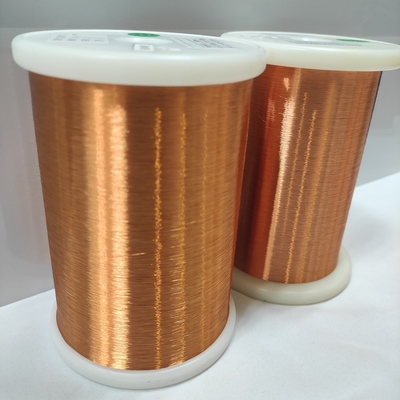

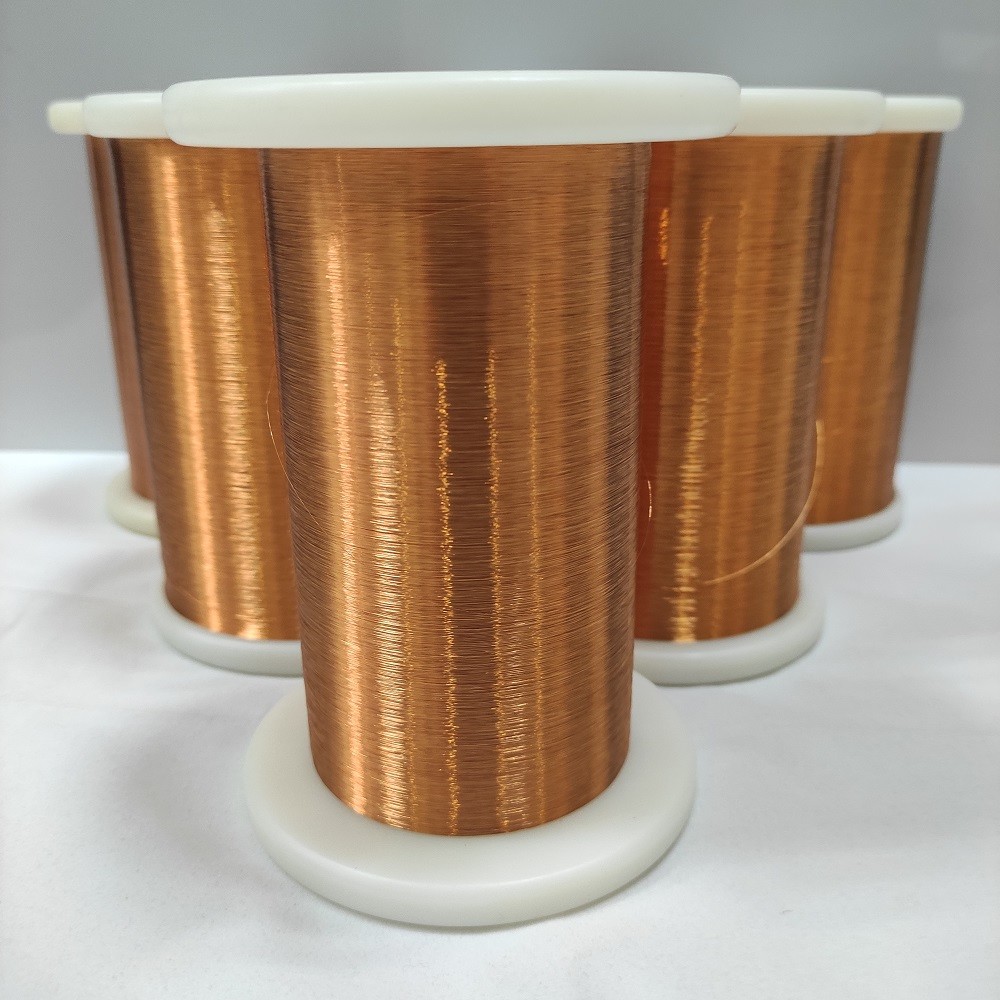

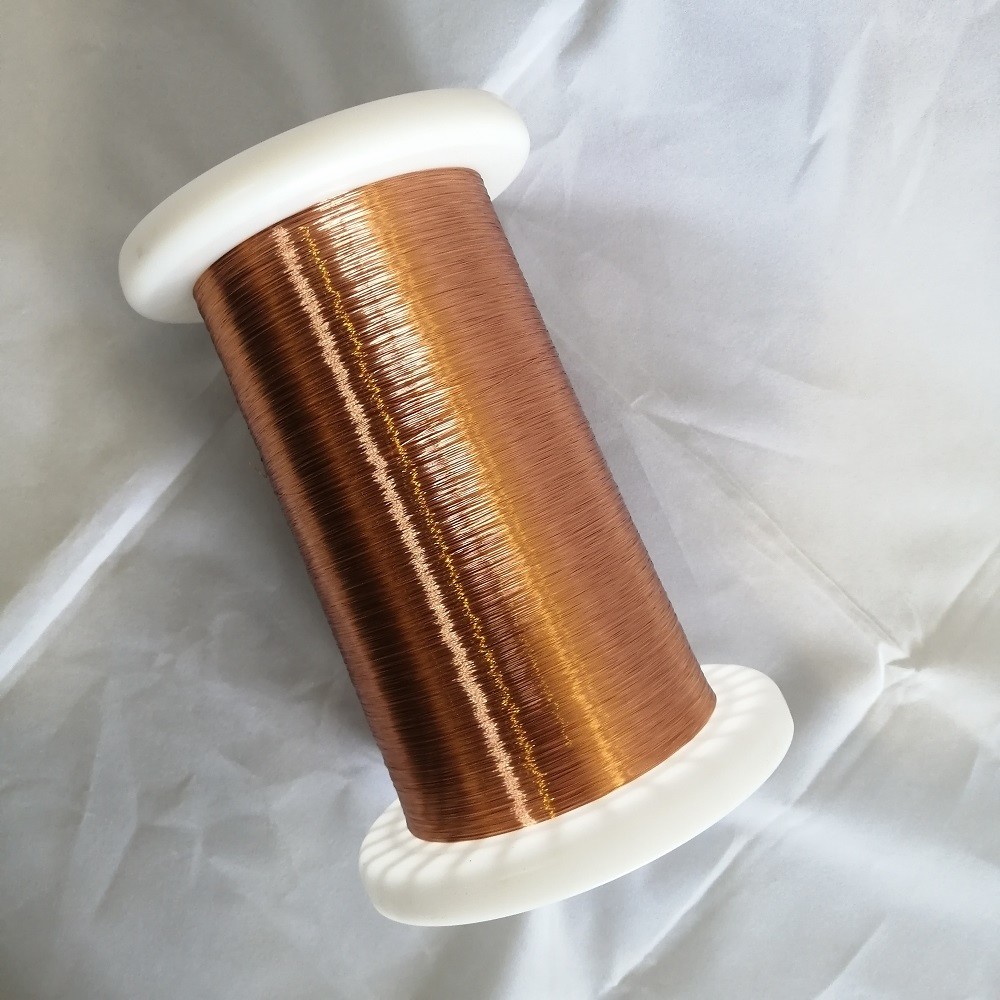

Class 200 Self Bonding Enameled Copper Round Wire Magnet Copper Wire 0.26mm
Definition of enameled wire (self-adhesive enameled wire & non-self-adhesive enameled wire) :
Enameled wire is made by coating a high purity, high conductivity conductor with an insulating coating,
Namely: conductor + insulating paint = non - self - adhesive enameled wire
Conductor + insulating paint + adhesive = self-adhesive enameled wire
Features:
By making the micrograph of the section of the test coil, it can be observed that the interturns of the self-adhesive enameled wire coil are firmly glued together after forming.Because of composite self-adhesive coating enameled wire is heated, its outer layer can melt solidification painting, the turn-to-turn bonding layer permeability interact with each other, each other to make wire surface more viscous layer coating, there is no obvious adhesion interface between conductor, it also reduce wire bonding between the parts of stress concentration, to enhance the bond strength.
With the assistance of our advanced technology, we offer quality range of Copper Strips. Manufactured using finest grade of raw material our array is widely used in numerous industries for excellent finish, corrosion resistance and durability. We even custom design these strips and flats as per client specific requirement.
Specification:
Model Number | QZYN-1B/200-0.26 | Place of Origin | Zhejiang,China |
Conductor Material | Copper | Brand Name | CHINGCUNG |
Type | Self-adhesive | Feature |
High breakdown voltage
|
Bonding Method | Alcohol Soluble | Delivery Time | 3-10 work days |
Thermal Class | 200 | Application | Transformers |
Film Grade | 1B | Packing | PT-25,PT-15.PT-10,PL-2 |
Shape | Round | OEM | Support |
FAQ:
Q1:What's diameters available of the products?
A:We specialize in fine and ultra fine enamelled copper and CCA wires, diameter available of our products is 0.02-0.90 mm.
Q2:What certificate do you have?
A:We have ISO9001, 14001, SGS, REACH and UL certificates.
Q3:Is possible to get any sample of self bonding enamelled copper wire that you have in production?
A:Of course you can!
Q4:Where is your factory located?
A:Our factory is located in Jiaxing City, Zhejiang Province, China.
Q5:Do you provide after-sales service?
A:Yes. If there is any quality problem to our products, please submit proof files, pictures or videos to us, we will investigate and give you a solution.
